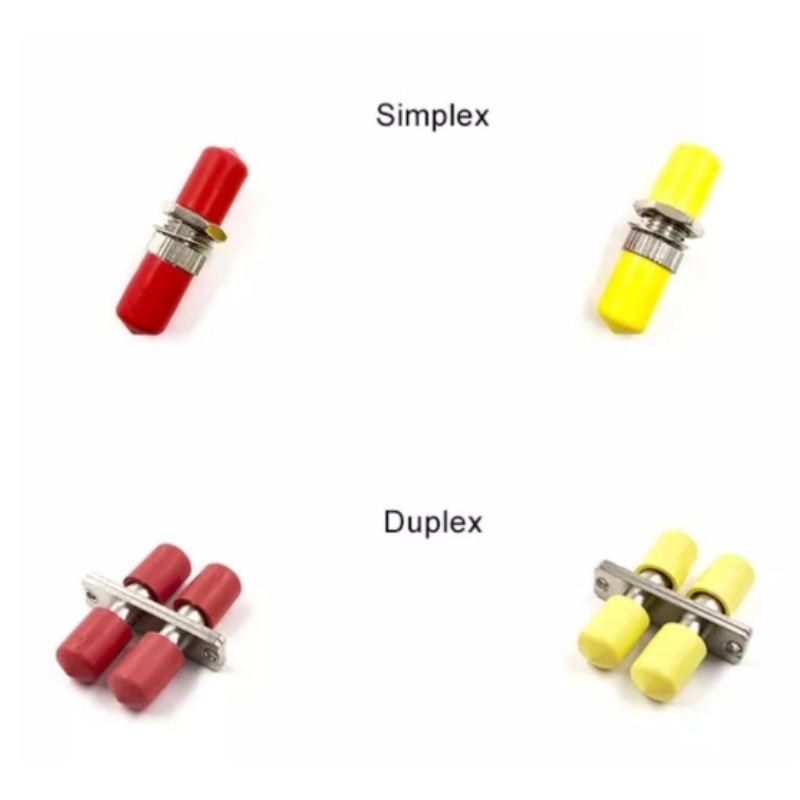

Fiber Optic Adapter

Description

Fiber Patch Cord is optical cable that has connectors on either end, making it easy and convenient to connect.

Details


Are you in need of Fast Fiber Optic Adapters that are both reliable and compatible with your cabling needs? Look no further! Our company offers a wide range of adapters that fit into Fast panels and are compatible with single-mode, multimode, and laser-optimized multimode connectors.

Our adapters  offer a variety of adapter types, including LC, SC, and ST. We are proud to say that all of our adapters are designed to be easy to use and reliable.

At fibeye, we prioritize your business' need for reliable and secure fiber optic connections. To that end, we are committed to providing you with only the highest quality Fast Fiber Optic Adapters that meet industry standards for performance and reliability.

Opt for our Fast Fiber Optic Adapters and experience secure, reliable connections that will keep your business running smoothly. Our LC shuttered adapters, for example, feature automatic opening and closing with the insertion and removal of an LC connector, ensuring that your connections are safe and secure.

Technical Data


Project

Values

Reference standard

FB/T 1272.1-2003

Insertion loss

≤0.2dB

IL change absolute
value

low temperature

Temperature: -40ºC
Duration: 168 h

≤0.2dB



high temperature

Temperature: 85ºC
Duration: 168 h
Temperature change rate: 1ºC/min

≤0.2dB



Hot and humid

Temperature: 40ºC
Humidity: 90%~95%
Duration: 168h
Temperature change rate: 1ºC/min

≤0.2dB



Temperature  cycle


Temperature: -40ºC to + 85ºC
Duration: 168h
Cycle times:21
Temperature change rate: 1ºC/min

≤0.2dB



repeatability

Insertion pull times:10

≤0.2dB



Mechanism durability

Insertion times: 500 cycles

≤0.2dB



Tensile strength Of coupling
mechanism

68.6N/10 Minute

≤0.2dB

Info & Guides


Features

  • Fast adapters snap into Fast panels or modules
  • ST and SC Fast Adapters are available in standard colors of ivory, white, gray, and black
  • Internal patented shutters on LC adapters eliminate the need for dust plugs to reduce waste, speed deployment, and ensure safer installation
  • Shuttered LC adapter door will illuminate when a VFL is used for fiber traceability
  • Shuttered LC adapter is IP5x-rated for limited protection against dust ingress
  • Use in permanent or temporary applications
  • ST, SC, and LC Fast Adapters are available with zirconia ceramic or phosphor bronze sleeves, and are compatible with single-mode, multimode, and laser optimized (LC only)
  • MTP Adapter key up to key down for single-mode applications

 APPLICATION

  • Optical fiber communication system
  • Cable television network
  • LAN, WAN
  • Optical fiber access network
  • video transmission
  • test equipment
