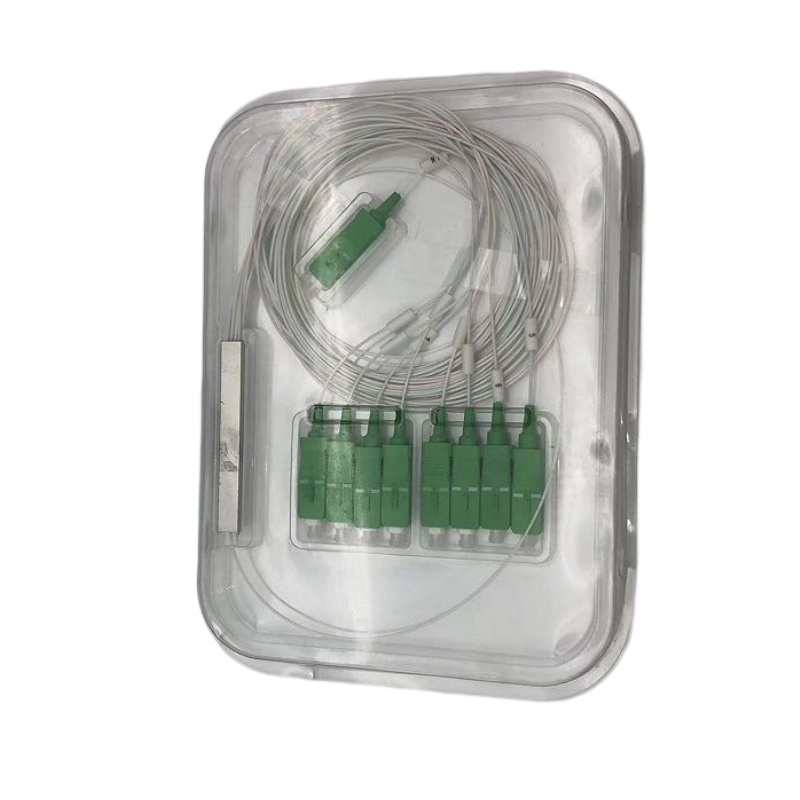

Fiber Optic Mini Type PLC Splitter

Fiber Optic Mini Type PLC Splitter

Description

We offer a complete series of 1xN and 2xN splitter products that are tailored for specific applications,

GET A QUOTE Watch Video

Details

mini type plc splitters use to deliver optical power management for split ratios of 2, 4, 8, 16, 32, and 64. Our products meet the YD/T2000-2009 and YD/T1117-2001 standards and full tested, ensuring excellent performance and reliability.

With their compact design and 0.9 mm slip-on fiber multichannel direct output, our mini splitters are easy to install and use. They are ideal for a range of applications, including FTTX networks, LAN/WAN and CATV networks.

Fibeye mini fiber optic splitters provide excellent channel-to-channel uniformity, ensuring optimal power management in fiber optic networks.

Technical Data

1xN PLC Splitter Specification
Operating Wavelength(nm) 1260~1650
Fiber Type G657A1 or as customers' order
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Insertion Loss (dB) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Temperature Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Return Loss (dB) 55/50
Operating Temperature -40~+85
Directivity (dB) ≥ 55
Storage Temperature -40~+85



2xN PLC Splitter Specification
Operating Wavelength(nm) 1260~1650
Fiber Type G657A1 or as customers' order
Port Configuration 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0 24.5
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.35 0.4 0.4
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5 0.5
Temperature Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Return Loss (dB) 55/50
Operating Temperature -40~+85
Directivity (dB) ≥ 55
Storage Temperature -40~+85

Info & Guides

FEATURE



  • Wide operating wavelength range:from 1260nm to 1650nm
  • Wide Operating Temperature: from -40ºC to 85ºC
  • Good channel-to-channel uniformity
  • High reliability and small size
  • Adopt high strength stainless steel, pass salt spray test
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss&Low PDL Compact Design



APPLICATIONS

  • FTTx
  • Cable television (CATV)
  • Local area networks (LAN)
  • Test equipment
  • Passive optical networks(PON)
