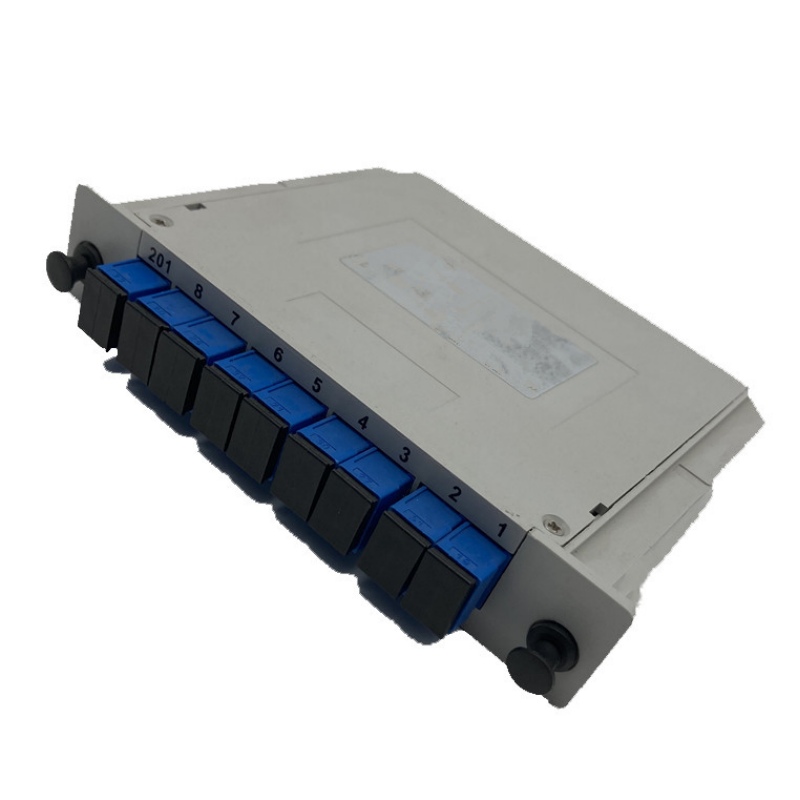

Fiber Optic Lgx PLC Splitter

Fiber Optic Lgx PLC Splitter

Description

We offer a complete series of 1xN and 2xN lgx splitter products that are tailored for specific applications.

GET A QUOTE Watch Video

Details

Lgx PLC splitter is an optical power management device that is made using silica optical waveguide technology.

It is known for its small size, high reliability, wide operating wavelength range, and good channel-to-channel uniformity.

We offer a complete series of 1xN and 2xN lgx splitter products that are tailored for specific applications, ensuring that our customers have access to the best solutions for their needs.

Technical Data

1xN PLC Splitter Specification
Operating Wavelength(nm) 1260~1650
Fiber Type G657A1 or as customers' order
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Insertion Loss (dB) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Temperature Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Return Loss (dB) 55/50
Operating Temperature -40~+85
Directivity (dB) ≥ 55
Storage Temperature -40~+85



2xN PLC Splitter Specification
Operating Wavelength(nm) 1260~1650
Fiber Type G657A1 or as customers' order
Port Configuration 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0 24.5
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.35 0.4 0.4
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5 0.5
Temperature Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Return Loss (dB) 55/50
Operating Temperature -40~+85
Directivity (dB) ≥ 55
Storage Temperature -40~+85

Info & Guides

FEATURE



  • Wide operating wavelength range:from 1260nm to 1650nm
  • Wide Operating Temperature: from -40ºC to 85ºC
  • Good channel-to-channel uniformity
  • High reliability and small size
  • Adopt high strength stainless steel, pass salt spray test
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss&Low PDL Compact Design



APPLICATIONS

  • FTTx
  • Cable television (CATV)
  • Local area networks (LAN)
  • Test equipment
  • Passive optical networks(PON)
