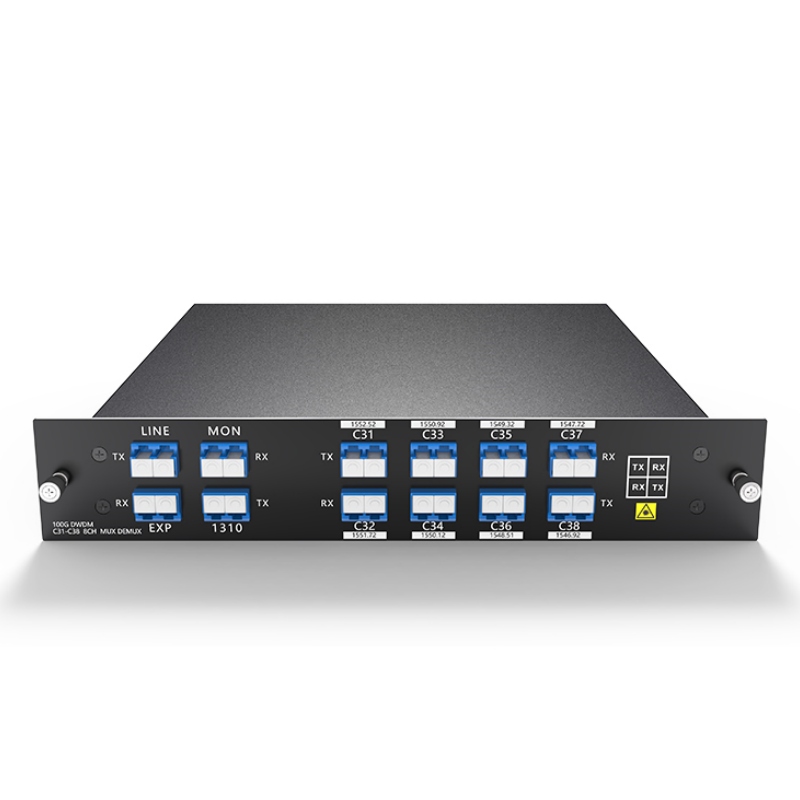

LC/UPC LGX Box 8 Channels 1U Rack DWDM

We're proud to present our 8ch DWDM MUX DEMUX LGX Box - a solution designed for high-capacity, long-distance transmissions.

Enhanced Wavelength Range

Our 8ch DWDM MUX DEMUX LGX Box operates on wavelengths from C31 to C38 (1552.52nm~1546.92nm).

Adhering to the ITU-T G.694.1 100GHZ grid, this device maximizes the capacity of the C-band range.

8CH DWDM MUX DEMUX Dual fiber transmission

Totally Passive LGX Box Module Device

Our product is a completely passive device and comes in an LGX box module that can be easily plugged into a 2-slot 1U rack.

It features a low insertion loss, with wavelength ports <2.4dB and a 1310nm port <0.8dB, ensuring efficient data transmission.

Long-Distance Transmission with DWDM Amplifiers and DCM Device

Coupled with DWDM amplifiers and a DCM device, our 8ch DWDM system supports long-distance transmission, making it a powerful solution for expansive networks.

1310nm Port for Legacy Traffic

The 1310nm port supports 1G LX/SX, 10G LR, 40G ER4/LR4, and 100G LR/ER4/LR4/ZR4, accommodating your existing legacy traffic and ensuring seamless data flow.

Easy Monitoring and Future-Proofed Expansion

With a 'Mon' port for network link or power monitoring, troubleshooting is a breeze without any impact on your traffic.

Additionally, our device features an Expansion Port for future bandwidth increases.

Boost network capacity by connecting it to the line port of another DWDM MUX/DEMUX with different wavelengths - no need for installing or leasing additional fibers.

Versatile Business Applications

Our 8ch DWDM MUX DEMUX LGX Box supports 8 different business applications in two optical fibers for point-to-point transmission.

Whether you're in Broadcast and TV, IDC, finance, government, cloud, or massive data industries, our device ensures seamless operations.

CWDM and DWDM Wavelengths

Hybrid DWDM over CWDM Network

While CWDM wavelengths range from 1260-1625nm with a 20nm channel spacing, DWDM wavelengths have a much smaller channel space (0.8nm).

The CWDM wavelengths near DWDM wavelengths can be used to transmit the DWDM wavelengths, providing you with an efficient and versatile solution.

At Fibeye, we're more than a manufacturer - we're your partners in optical communication. Elevate your network capabilities with our 8ch DWDM MUX DEMUX LGX Box today.

Features of Fibeye's LGX Box DWDM MUX DEMUX:

1. 8-channel DWDM MUX DEMUX
2. Wavelength range from C31 to C38 (1552.52nm~1546.92nm)
3. ITU-T G.694.1 100GHZ grid compliant
4. Passive LGX box module device
5. Plug-and-play installation in a 2-slot 1U rack
6. Low insertion loss: <2.4dB for wavelength ports, <0.8dB for 1310nm port
7. Supports 1G LX/SX, 10G LR, 40G ER4/LR4, 100G LR/ER4/LR4/ZR4 for 1310nm port
8. Mon port for network link monitoring and power monitoring
9. Expansion Port for future bandwidth increase
10. Suitable for point-to-point transmission

Applications:

1. Broadcast and TV
2. IDC (Internet Data Centers)
3. Finance
4. Government
5. Cloud services
6. Massive data management
